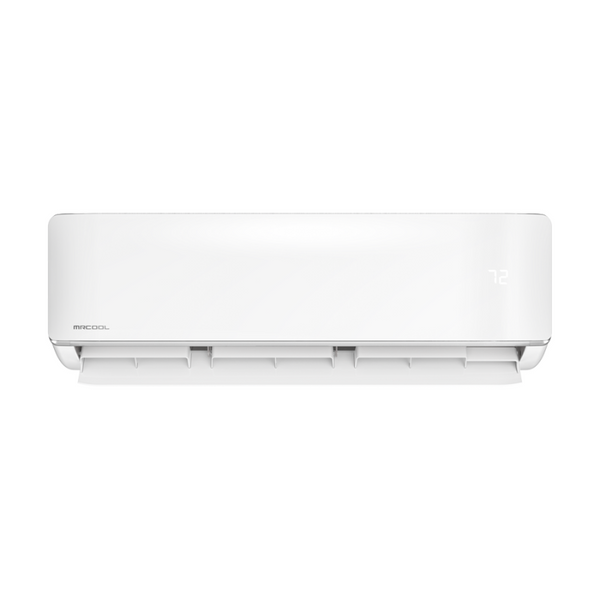

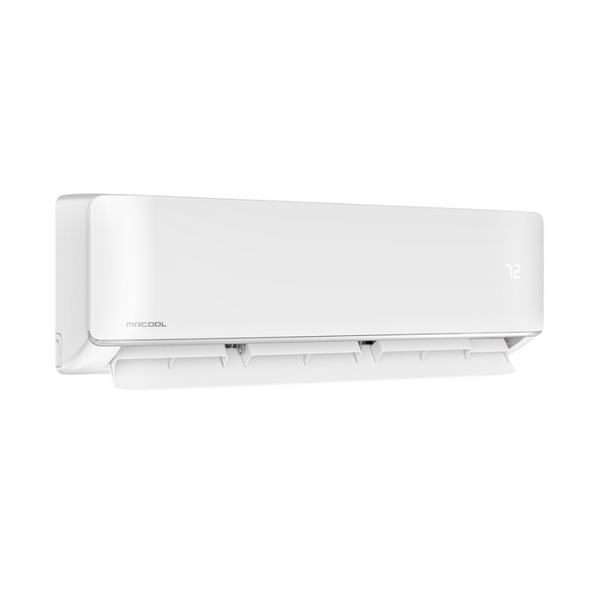

MRCOOL DIY 4th Generation, 12K BTU Heat Pump Wall Mount Air Handler (DIY-12-HP-WMAH-230C25)
MRCOOL DIY 4th Generation, 12K BTU Heat Pump Wall Mount Air Handler (DIY-12-HP-WMAH-230C25)
Think you can’t install an HVAC system yourself? Think again. The MrCool DIY 12K BTU Heat Pump Wall Mount Air Handler is designed for easy, hassle-free installation—no special tools or experience required.
This unit delivers year-round comfort while reducing energy costs. Whether you're upgrading your home, adding climate control to a new space, or replacing an outdated system, the MRCOOL DIY Mini-Split is the perfect choice for homeowners seeking convenience and performance.
Key Features:
- DIY - 12k 230V WMAH 4TH GEN w/25' comm cable
- Easy DIY installation - this unit comes with a pre-charged quick connect DIY lineset that allows you to install this innovative ductless system without special tools, equipment or training. No need to hire an HVAC professional!
- Control your unit from anywhere with your Apple or Android smart device and an internet connection
Product Specifications:
| Cooling Capacity (BTU): | 12000 |
| Heating Capacity (BTU): | 12000 |
| Voltage (V): | 208-230 |
| Phase: | 1 |
| Cycle: | 60 |
| Max Fuse Breaker (A): | 15 |
| Min Circuit Ampacity (A): | 3 |
| Mount Type: | Wall |
| Color: | White |
| Color Family: | White |
| Max Coverage Area: | Up to 500 |
| Refrigerant Type: | R-410A |
| Decibel Rating (dBA): | 35 |
| Decibel Rating Low (dBA): | 25 |
| Decibel Rating High (dBA): | 40 |
| Inverter: | Yes |
| Liquid Line Size: | 1/4 |
| Suction Line Size: | 1/2 |
| Blower Motor RPM: | 1050/850/650 |
| Fan Only Option: | Yes |
| Quiet Mode: | Yes |
| Auto Cool: | Yes |
| WiFi Compatibility: | Yes |
| App Compatibility: | Yes |
| Works with iOS: | Yes |
| Works with Android: | Yes |
| Remote Control Included: | Yes |
| Energy Star Certified: | Yes |
| AHRI Certified: | Yes |
| Registered Warranty: | Limited Lifetime Compressor |
| Base Warranty: | 5-year Parts/7-year Compressor |
| Base Parts Warranty: | 5-year Parts |
| Registered Compressor Warranty: | Limited Lifetime Compressor |
| Base Compressor Warranty: | 7-year Compressor |
| Has Batteries: | Yes |
| Contains Electronics: | Yes |
| Contains Chemicals: | Yes |
| Contains Aerosol: | Yes |
| Contains Compressed Gas: | Yes |
| Proposition 65 Warning: | Yes |
| Restricted States: | GU;PR;VI |
| Net Depth (in): | 7.44 |
| Net Height (in): | 11.69 |
| Net Width (in): | 31.57 |
| Net Weight (lbs): | 23.81 |
| Gross Depth (in): | 16.34 |
| Gross Height (in): | 13.98 |
| Gross Width (in): | 36.02 |
| Gross Weight (lbs): | 34 |
Why Choose MRCOOL DIY?
- True DIY Installation – Save thousands on labor costs.
- Pre-Charged Quick Connect Line Set – No refrigerant handling required.
- Energy Star Certified – Designed for maximum efficiency and cost savings.
- Industry-Leading Warranty – Protects your investment for years to come.
