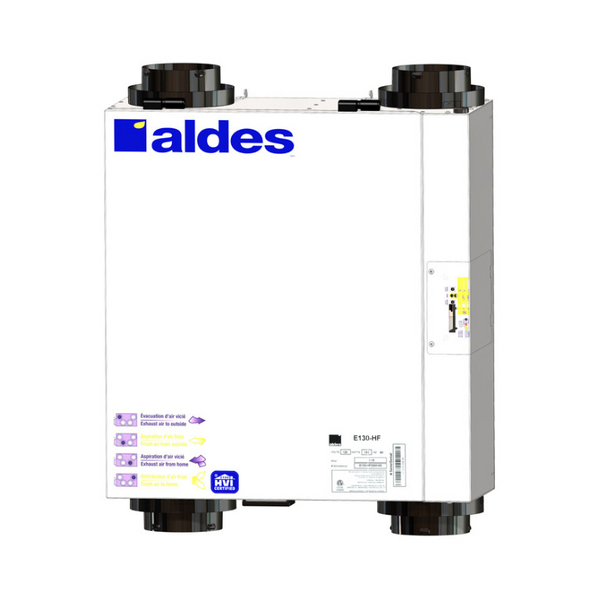

Aldes E130-HF-N-M Residential ERV
Aldes E130-HF-N-M Residential ERV
- 106 cfm, horizontally-ducted, fan exhaust defrost, 120v hardwired, mirrored configuration
- The ideal in-suite ventilation solution for high-rise construction, the E130-HF-M-N delivers exceptional performance in a compact, easy-to-install package only 9-1/4” in height.
- Easily concealed in a drop-ceiling or soffit, the E130-HF-M-N has been thoughtfully engineered for apartments, condos, and all dwellings that use concrete-slab construction.
- The E130-HF-M-N exchanges approximately 106 CFM at 0.40 in.w.g (ESP), enough for even the largest units in multi-family construction.
- The E130-HF-M-N includes Aldes’ exclusive FLEXControl, electronic calibration that eliminates the need for balancing dampers and improves overall efficiency.
- Cold Supply Air Prevention (CSAP) stops air distribution to the dwelling for 135-minute cycles if the supply air temperature is below freezing, reducing the risk of damage to downstream equipment.
Product Specifications:
| Material: | Pre-painted 24-gauge galvanized steel |
| Insulation: | 1" (25 mm) Fiberglass with FSK and polystyrene |
| Drain Connection: | None |
| Duct Connections: | 5" (127 mm) |
| Length: | 24-1/8" (613 mm) |
| Height: | 9-1/4" (235 mm) |
| Width: | 22-1/4" (565 mm) |
| Unit Weight: | 16 kg 35 lb |
| Plate Exchanger Material: | High-latent-transfer (HLT) |
| Frost Control: | Automatic timed integral exhaust defrost; cycles controlled by a temperature sensor when the outdoor temperature drops below 14°F (-10°C) |
| Blowers: | Two motorized impellers (backward-inclined) |
| Filters: | 2 Washable Foam 20 ppi (P/N 612405); Optional (sold separately): Washable MERV8 (P/N 683961), or High Efficiency / MERV13 Equivalent (P/N 612407) |
