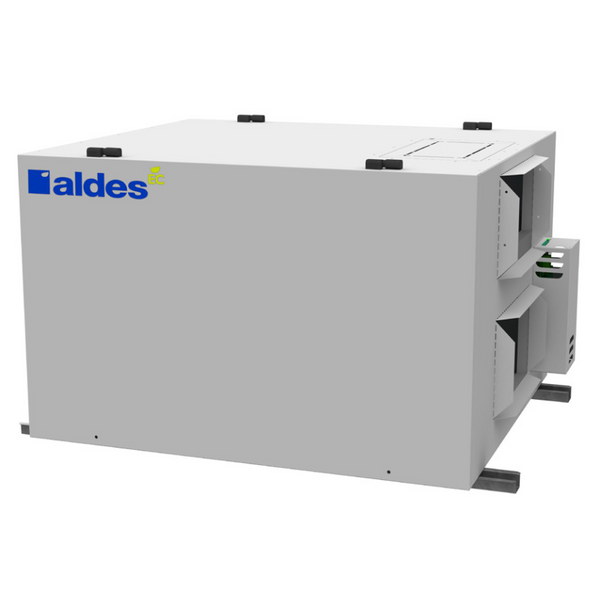

Aldes E1800L-Fi-EC-N Light Commercial ERV
Aldes E1800L-Fi-EC-N Light Commercial ERV
- 1925 cfm, EC motor, fan exhaust defrost, 208/230v hardwired
- The E1800L-Fi-EC-N energy recovery ventilator provides up to 1925 cubic feet per minute of fresh outdoor air while exhausting an equivalent amount of stale indoor air, creating a well-balanced ventilation system.
- The E1800L-Fi-EC-N makes use of Aldes’ AHRI Certified High Latent Transfer enthalpic cores that deliver superior moisture transfer and can be used in any climate zone.
- The highly efficient and quiet variable-speed EC motors use on average 50% less electricity of the E1800L-Fi-N at low speed, significantly increasing return on investment.
- The E1800L-Fi-EC-N is recommended for midsized non-residential spaces or dedicated zones within larger buildings such as classrooms, common areas of residential complexes and indoor parking garages.
- Designed for versatile indoor installation, Aldes light commercial ventilators can fit almost anywhere and still provide easy access to the internal components for quick maintenance.
- The units also offer a choice of five continuous operation speeds and a demand-controlled high speed exchange mode.
Product Specifications:
| Material: | Painted galvanized steel 22GA |
| Insulation: | 1" (25 mm) Fiberglass with FSK |
| Drain Connection: | Ø 1/2” (Ø 13 mm) |
| Duct Connections: | 24” x 8” (610 mm x 203 mm) |
| Width: | 45-5/8" (1158 mm) |
| Height: | 29-5/8" (753 mm) |
| Depth: | 48-7/8" (1242 mm) |
| Unit Weight: | 245 lb (111 kg); 258 lb (117 kg) with recirculation |
| Plate Exchanger Material: | High latent transfer (HLT) |
| Frost Control: | Cycles controlled by a temperature sensor below 14°F (-10°C); Standard: Exhaust Defrost; Optional: Recirculation Defrost (P/N 683950) |
| Blowers: | Four backward-inclined motorized impeller, direct drive EC motor, variable speed, external rotor |
| Filters: | Aluminum (P/N 612414, pack of 3); Optional: MERV 8 (P/N 612411, pack of 3), High Efficiency (P/N 612412, pack of 3); Model requires 6 filters total |
