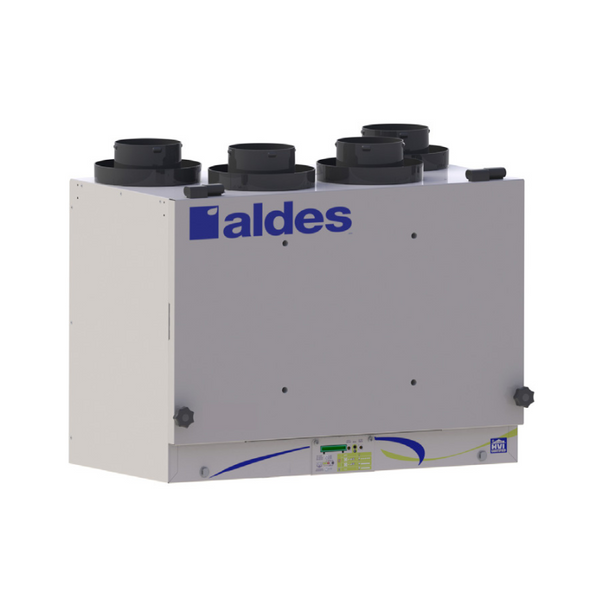

Aldes H120-TQG Residential HRV
Aldes H120-TQG Residential HRV
- The H120-TQG has been thoughtfully engineered for simple installation in apartments, condos, and small houses.
- The 4-inch removable collars are top-mounted, which makes the unit both narrow and shallow enough to fit inside standard closets and other tight spaces.
- The H120-TQG features recirculation defrost using four ports, and can be adjusted to deliver balanced airflows between 50 and 130 CFM.
Product Specifications:
| Material: | Pre-painted 24-gauge galvanized steel |
| Insulation: | Molded EPS |
| Drain Connection: | Ø 3/8’’ (Ø 10 mm) |
| Duct Connections: | Ø 4’’ (Ø 102 mm) |
| Width: | 23-1/8’’ (587 mm) |
| Height: | 16-3/4’’ (425 mm) |
| Depth: | 12-3/8’’ (314 mm) |
| Unit Weight: | 15 kg 32 lb |
| Plate Exchanger Material: | Polypropylene |
| Frost Control: | Automatic timed recirculation, four port; cycles controlled by a temperature sensor when the outdoor temperature drops below 23°F (-5°C) |
| Blowers: | Motorized impellers (backward-inclined) |
| Filters: | Two MERV6 filters (P/N 612409); Optional: Two MERV13 filters (P/N 612410) |
