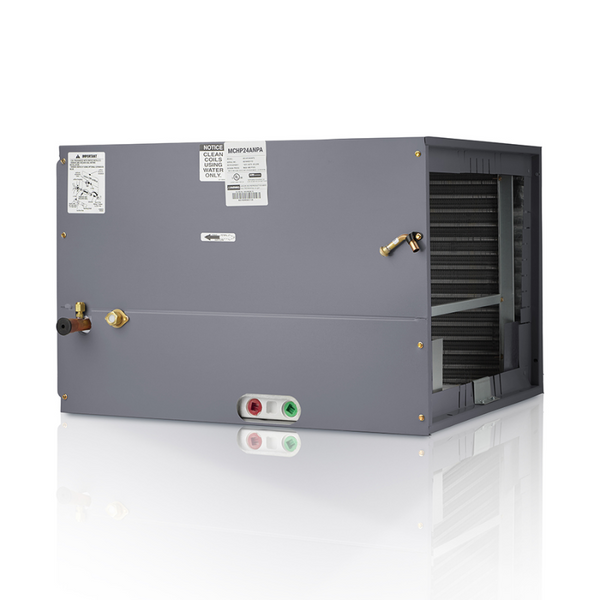

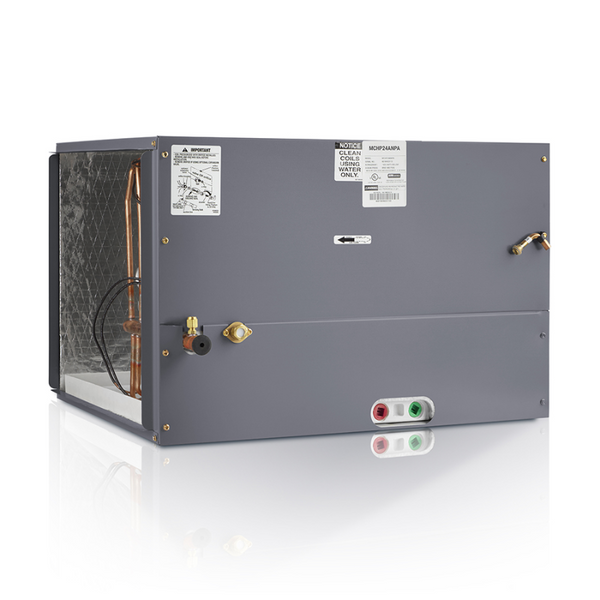

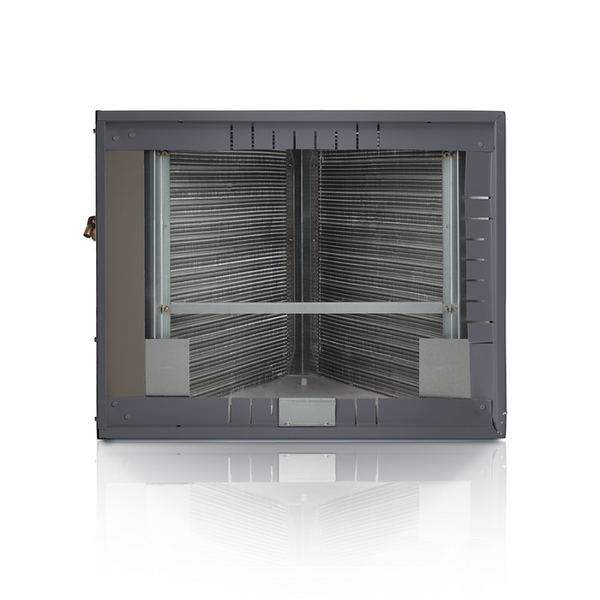

MRCOOL R410A 30,000 BTU Horizontal Painted 17.5" Evaporator Coil (MCHP30BNPA)
MRCOOL R410A 30,000 BTU Horizontal Painted 17.5" Evaporator Coil (MCHP30BNPA)
- 2.5 Ton BTU R-410A Horizontal Cased Evaporator Coil
- Efficient and durable solution for heat pumps and air conditioners with fast, flexible application
- When paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, efficiency ratings can reach up to 16 SEER
- Interlocking door assemblies and snug line seal grommets to minimize air leakage
- All units UL Listed and AHRI Certified
- Low water retention drain pans to minimize mold and mildew growth
- Insulated galvanized steel case with durable embossed finish
- Foil-face insulation for easy cleaning and UV light compatibility
- Removable top panels for easy service and superior access to components
- 10-Year Parts Limited Warranty included
Product Specifications:
| Tonnage: | 2.5 |
| Cooling Capacity: | 30000 BTU |
| Cased: | Yes |
| Configuration: | Horizontal |
| Country of Origin: | USA |
| Color: | Gray |
| Color Family: | Gray |
| Refrigerant Type: | R410A |
| Liquid Line Size: | 3/8 |
| Suction Line Size: | 3/4 |
| Lineset Fitting Type: | Sweat |
| Auxiliary Heater Available: | Yes |
| Base Parts Warranty: | 5 Year Parts Warranty |
| Registered Parts Warranty: | 10 Year Parts Warranty |
| Dimensions: | 26.5 in D x 17.5 in H x 21.5 in W |
| Weight: | 53 lb |
